Description

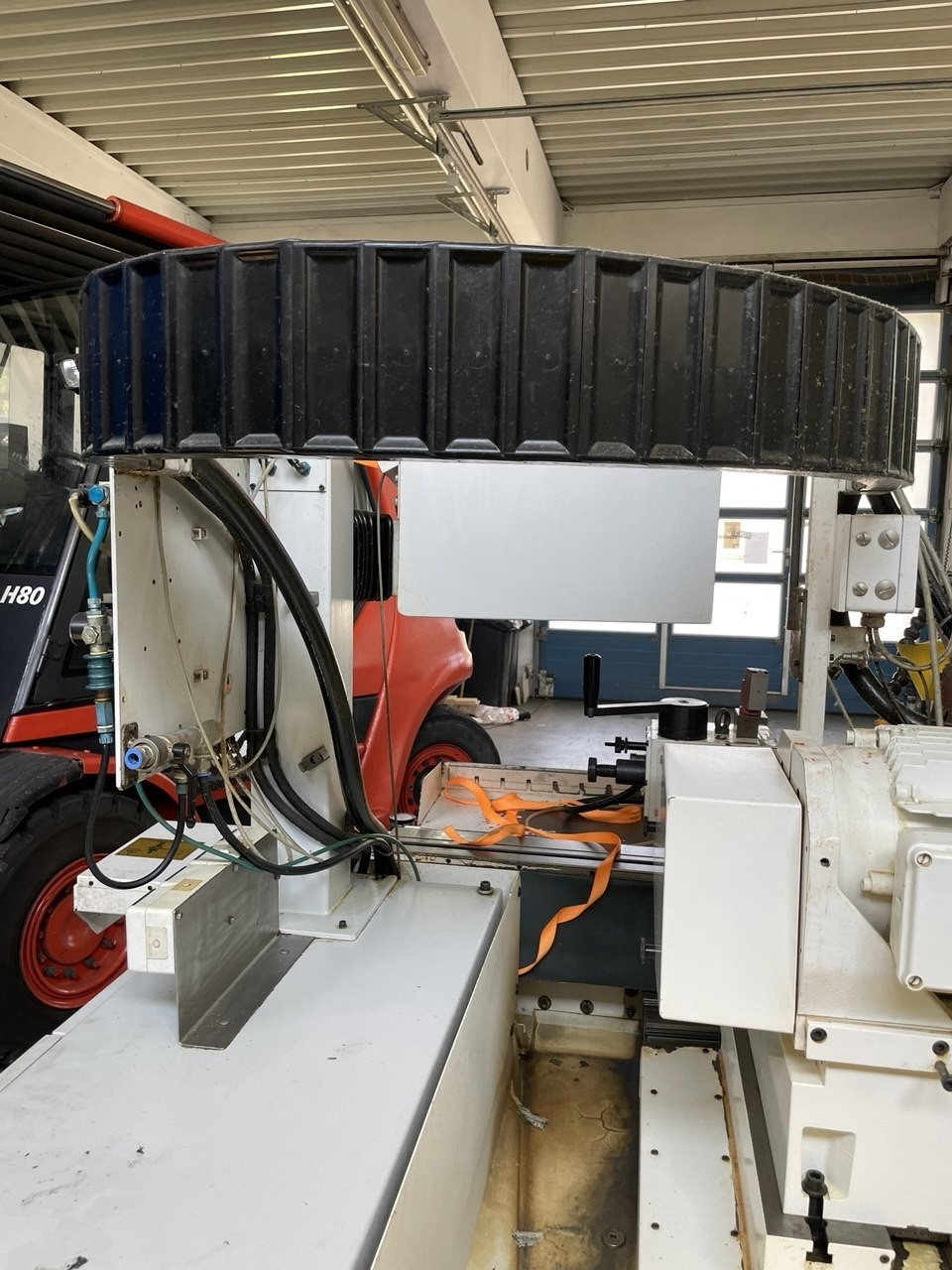

Universal cylindrical grinding machine by Fritz Studer AG (Thun, Switzerland), hydraulically controlled, for grinding between centres and live-spindle grinding. This machine comes with the complete original STUDER operating manual including the spare parts catalogue and the EC declaration of conformity, both issued for its machine number. According to that factory documentation it is the 1,000 mm centre distance version: in the geometry tables of the manual exactly the row 1000 (clamping length 1,030 mm, table travel 1,050 mm) is printed in bold. External grinding wheel on the left Ø 400 × 80 × Ø 127 mm, hydrodynamically bedded wheel spindle, Sony LD10 digital readout. Machine base in Granitan® S103 — the mineral casting STUDER has built its cylindrical grinders on for decades. The series is designed to take a hinged internal grinding attachment; whether this attachment is present on this machine is confirmed bindingly upon inspection.

Technical data
Distance between centres
1,000 mm (per factory documentation)
Centre height
125 / 175 / 225 mm — on request
Max. external grinding dia.
depends on centre height — on request
Max. workpiece weight
130 kg
X travel (infeed)
300 mm (manual) / 255 mm (brochure)
Z travel (longitudinal)
1,050 mm

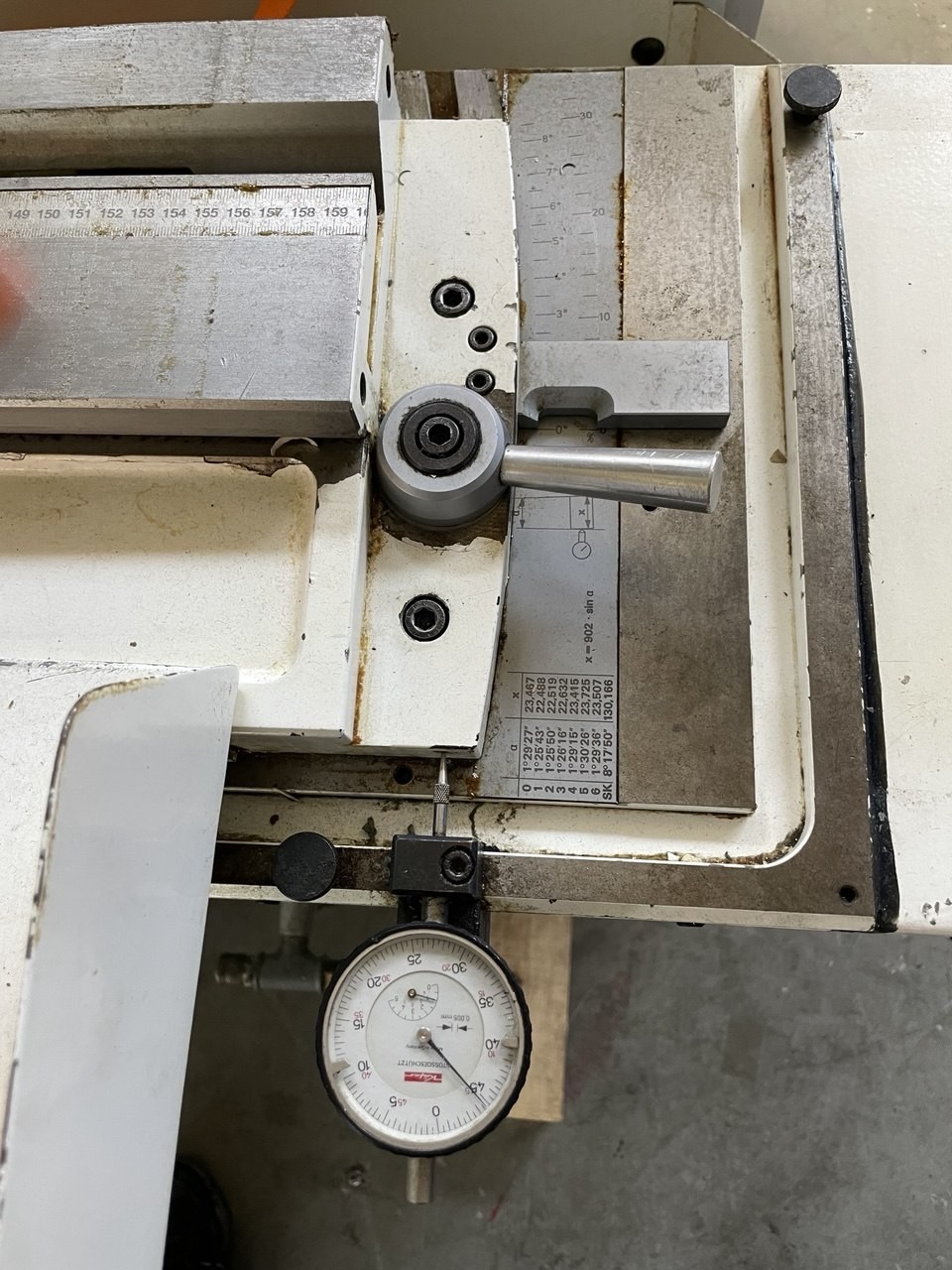

Table swivel
8.5°
Wheelhead swivel (B)
swivelling; version (universal or external wheelhead) confirmed upon inspection
Wheel spindle taper
Ø 63 mm

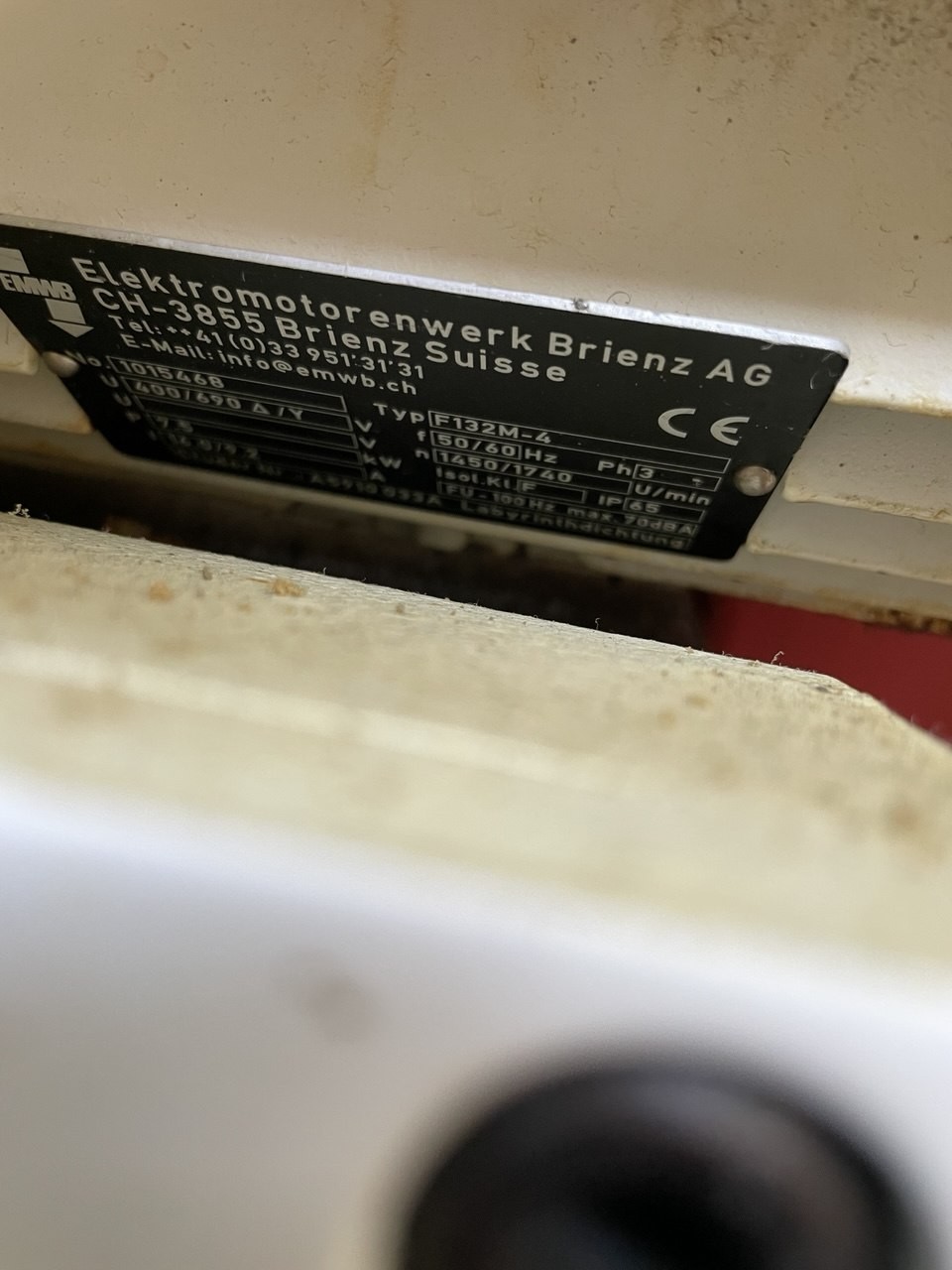

Wheel spindle power
5.5 kW (manual) / 7.5 kW (previous supplier) — to be confirmed
Wheel spindle speeds
1,670 / 2,110 rpm
Grinding wheel left

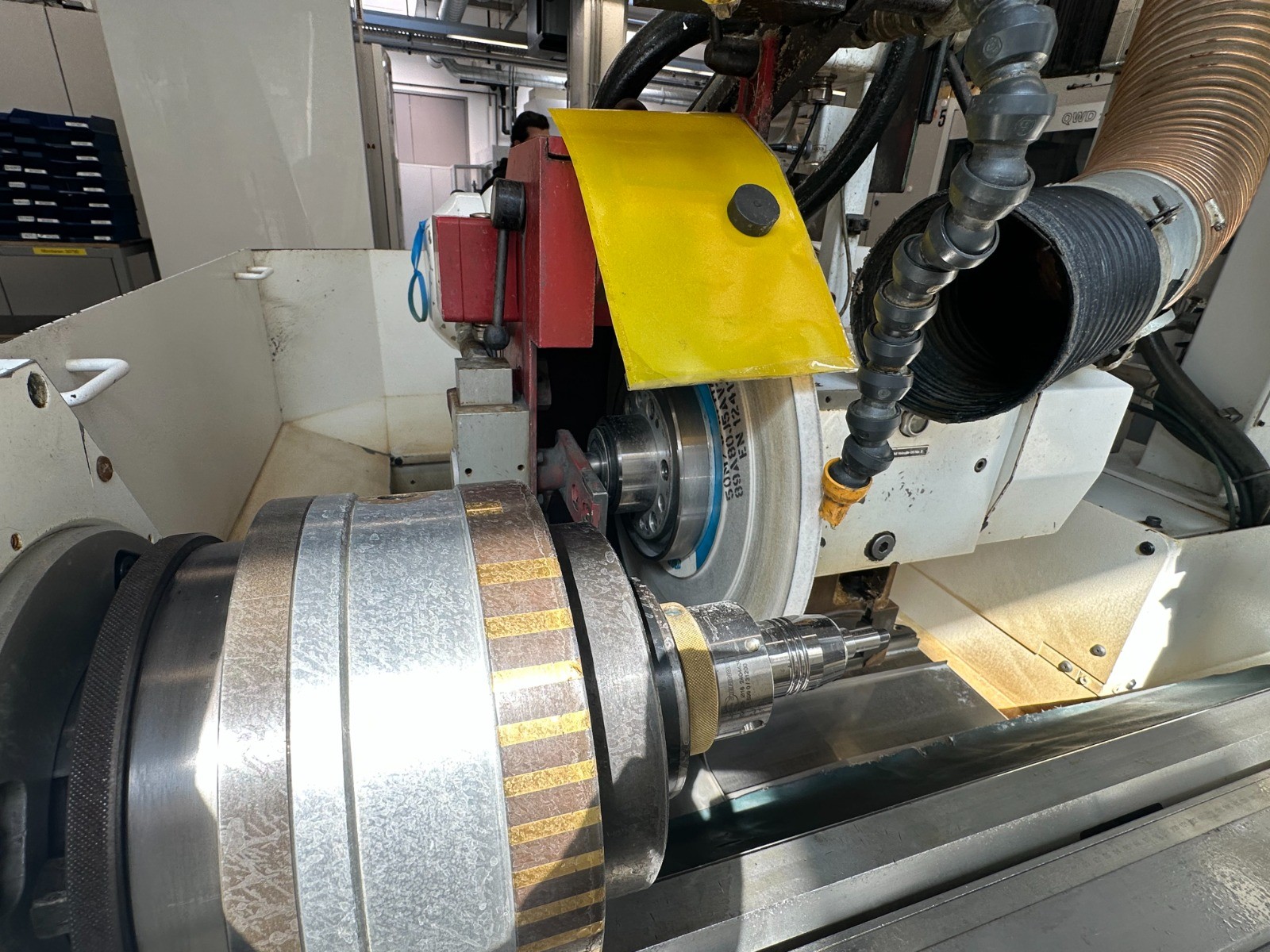

Ø 400 × 80 × 127 mm (max.)

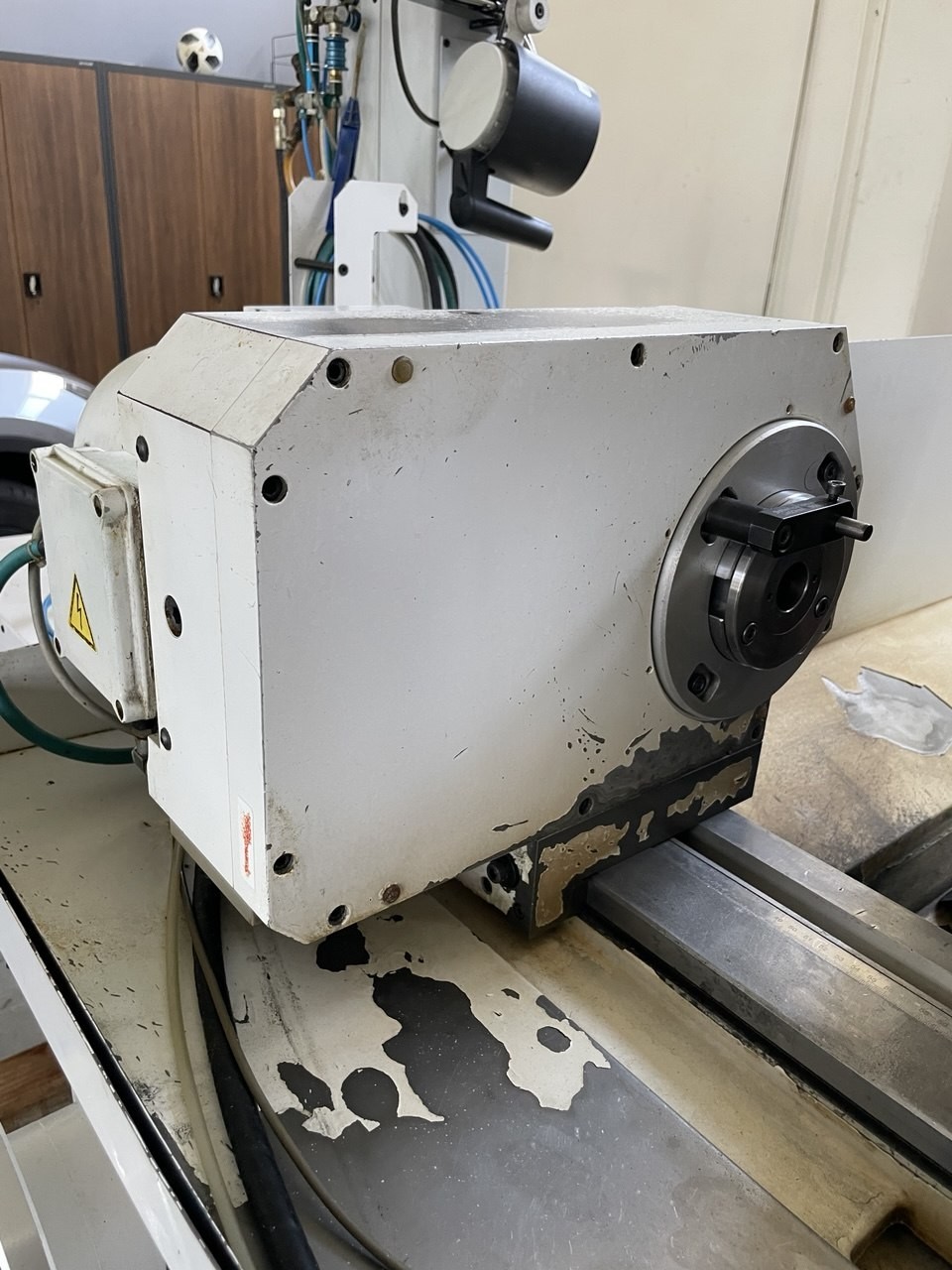

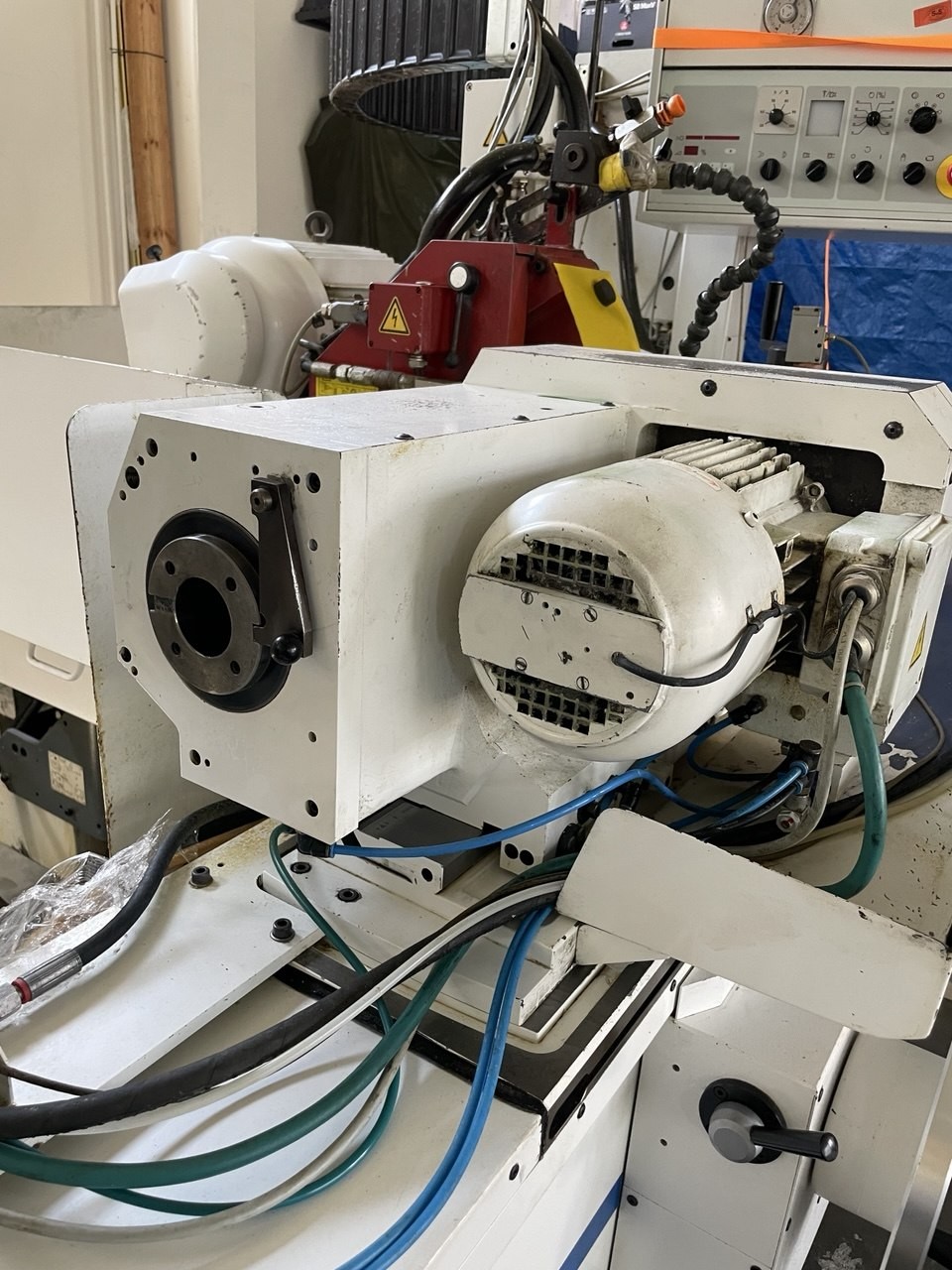

Workhead
30–1,000 rpm stepless per manual, MT 5, W-25 collets
Roundness (chuck grinding)
0.0003 mm (hydrodynamic) / 0.0005 mm (roller bearing)
Guaranteed working accuracy
0.0025 mm over 400 mm · 0.004 mm over 650 mm

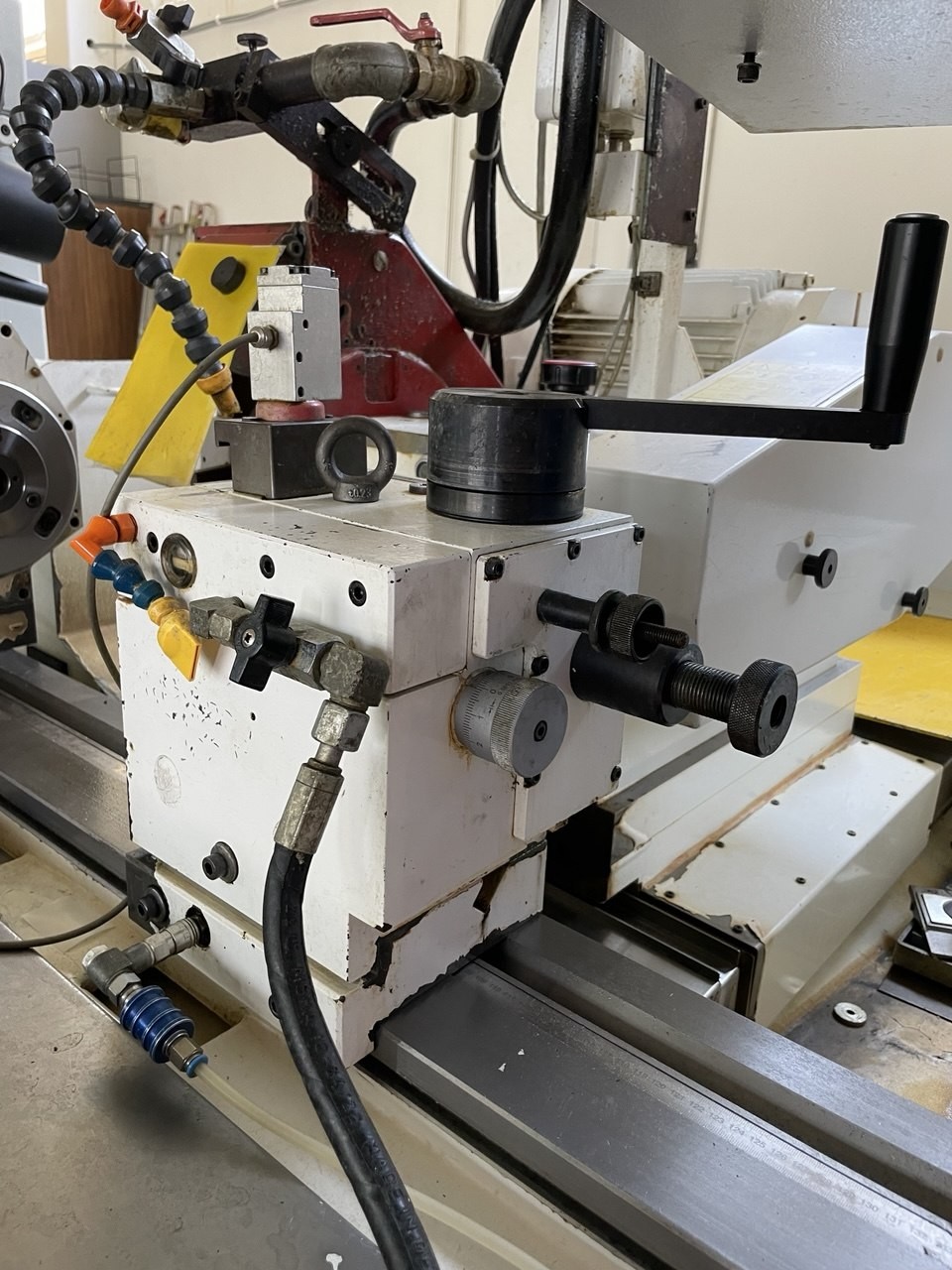

Tailstock
MT 3, quill stroke 35 mm
Internal grinding
series provides for a hinged internal grinding attachment (belt spindles, 1.5 kW drive) per operating manual — no attachment and no belt spindle visible on our photos; to be checked on site
Readout / gauging

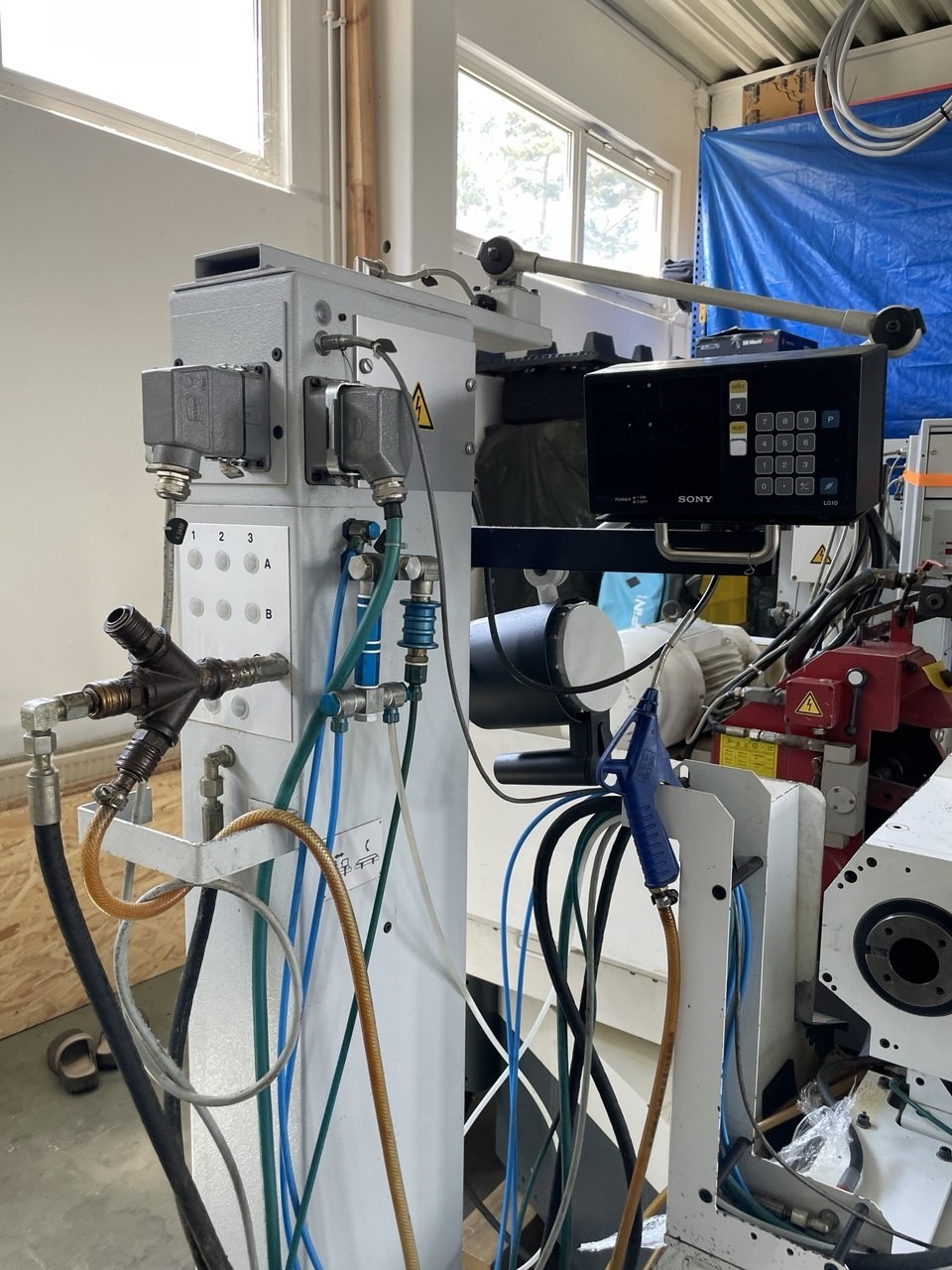

Sony LD10 digital readout on a swivel arm fitted. No in-process gauging identifiable on the photos (an option per the manufacturer)

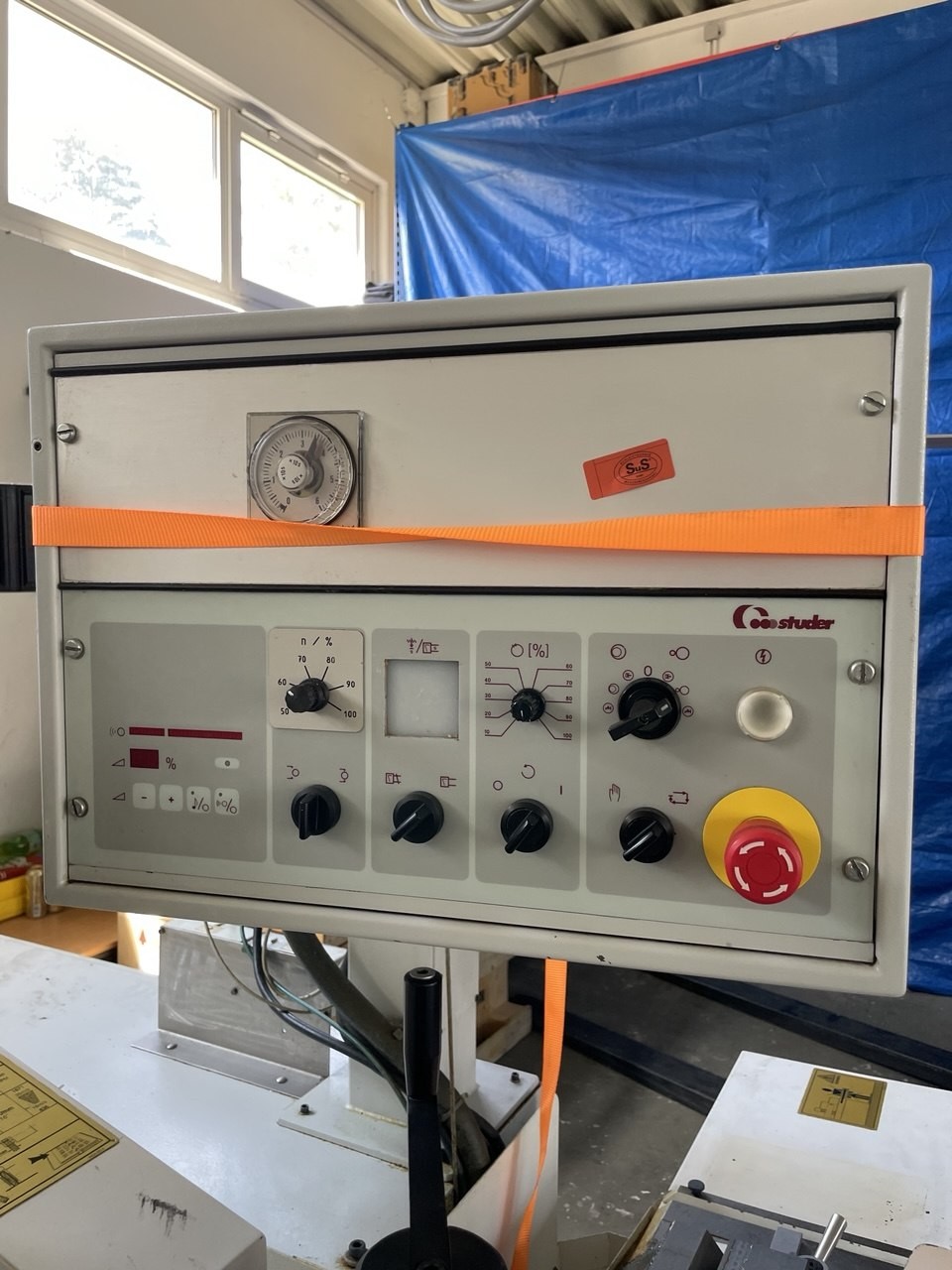

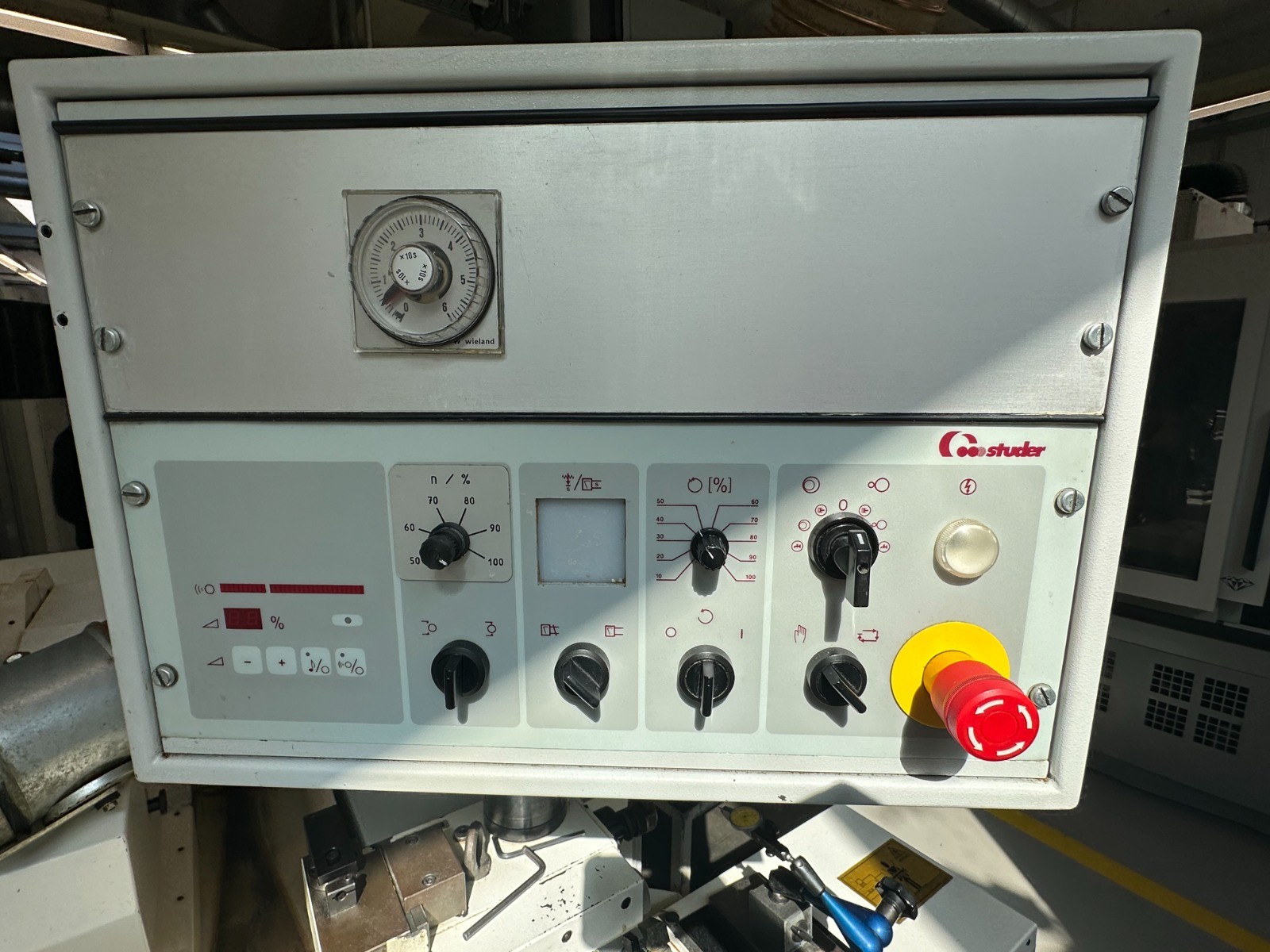

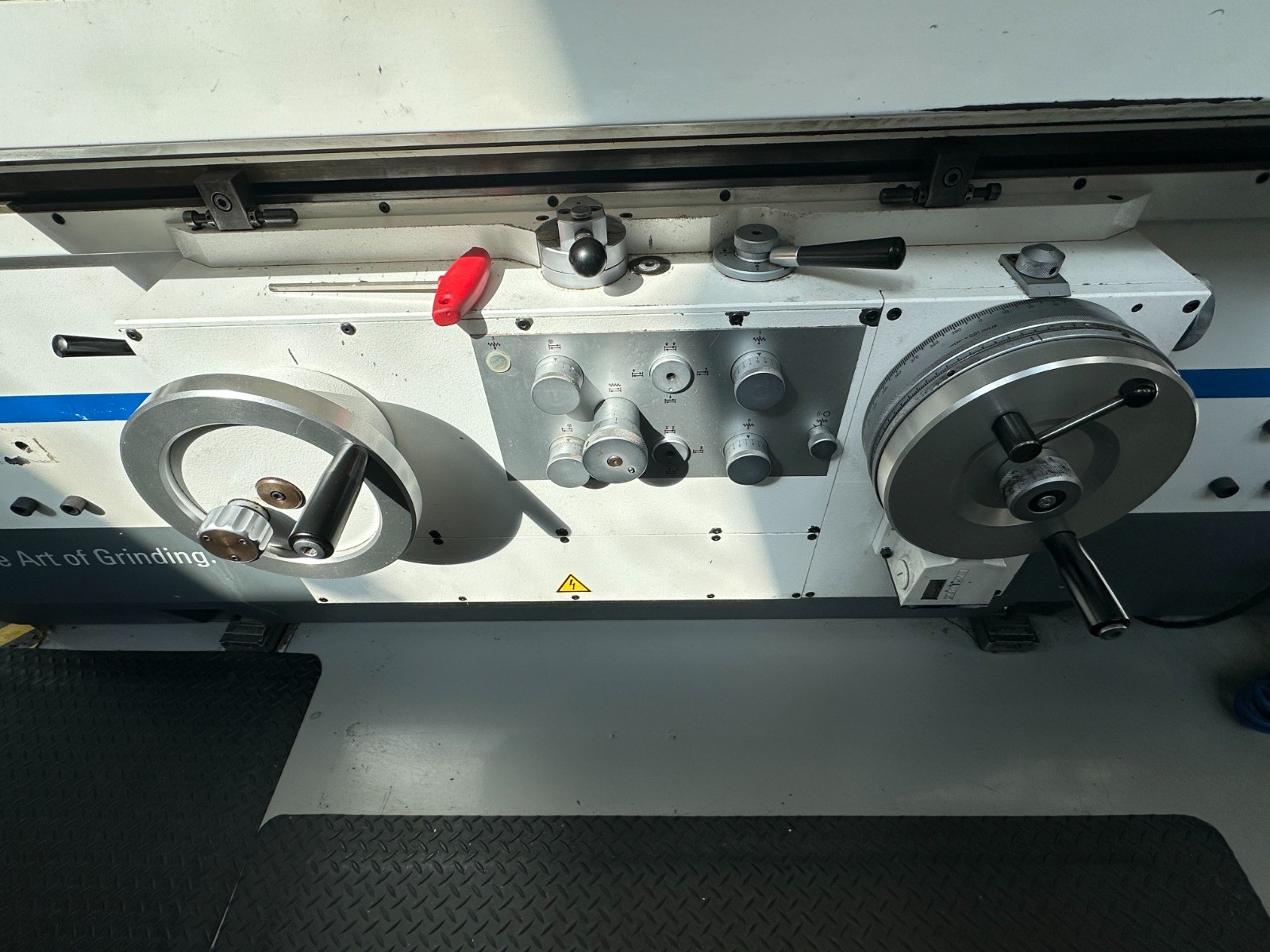

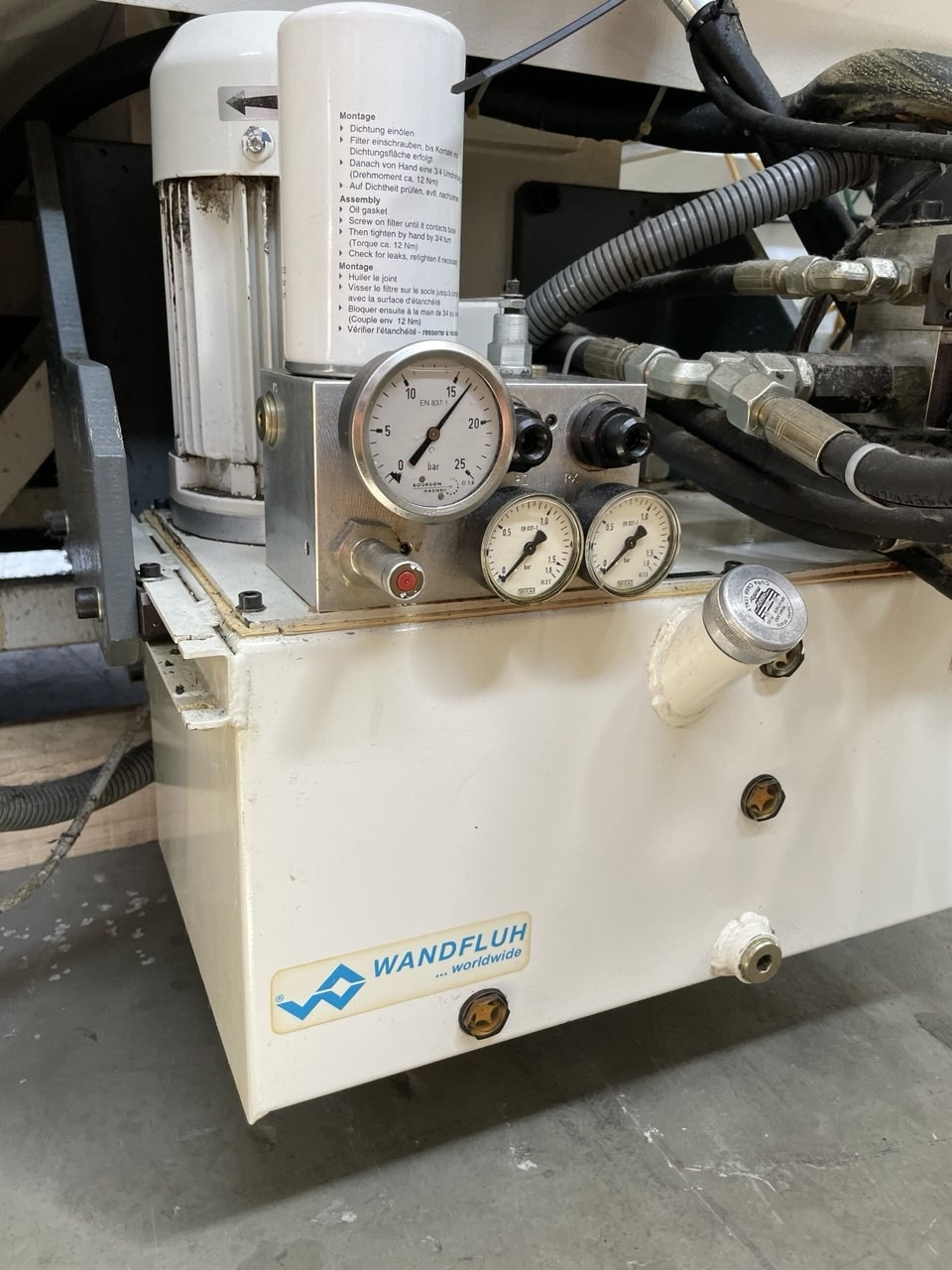

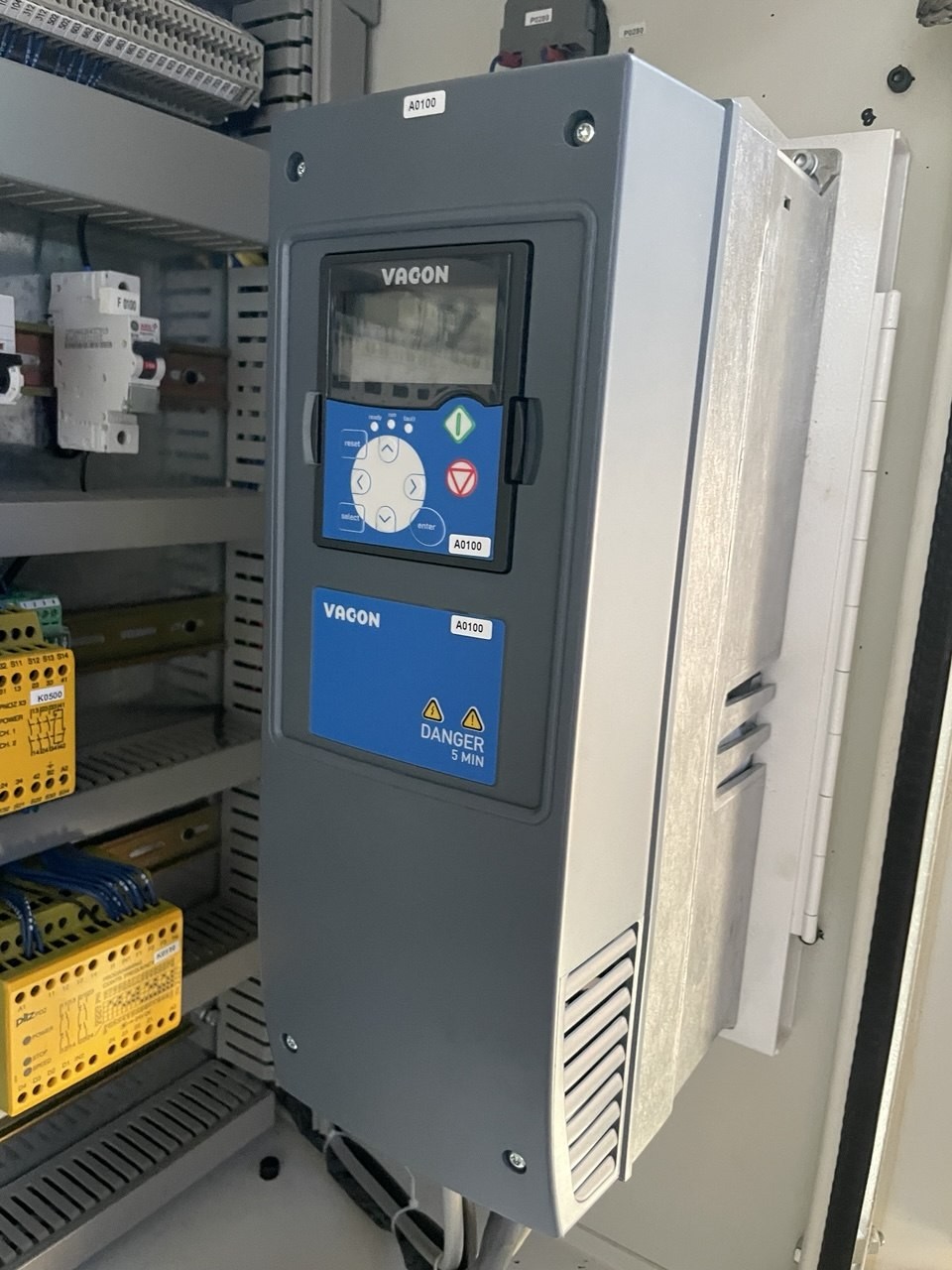

Control
conventional, hydraulic cycles (no CNC)
Base material
Granitan® S103

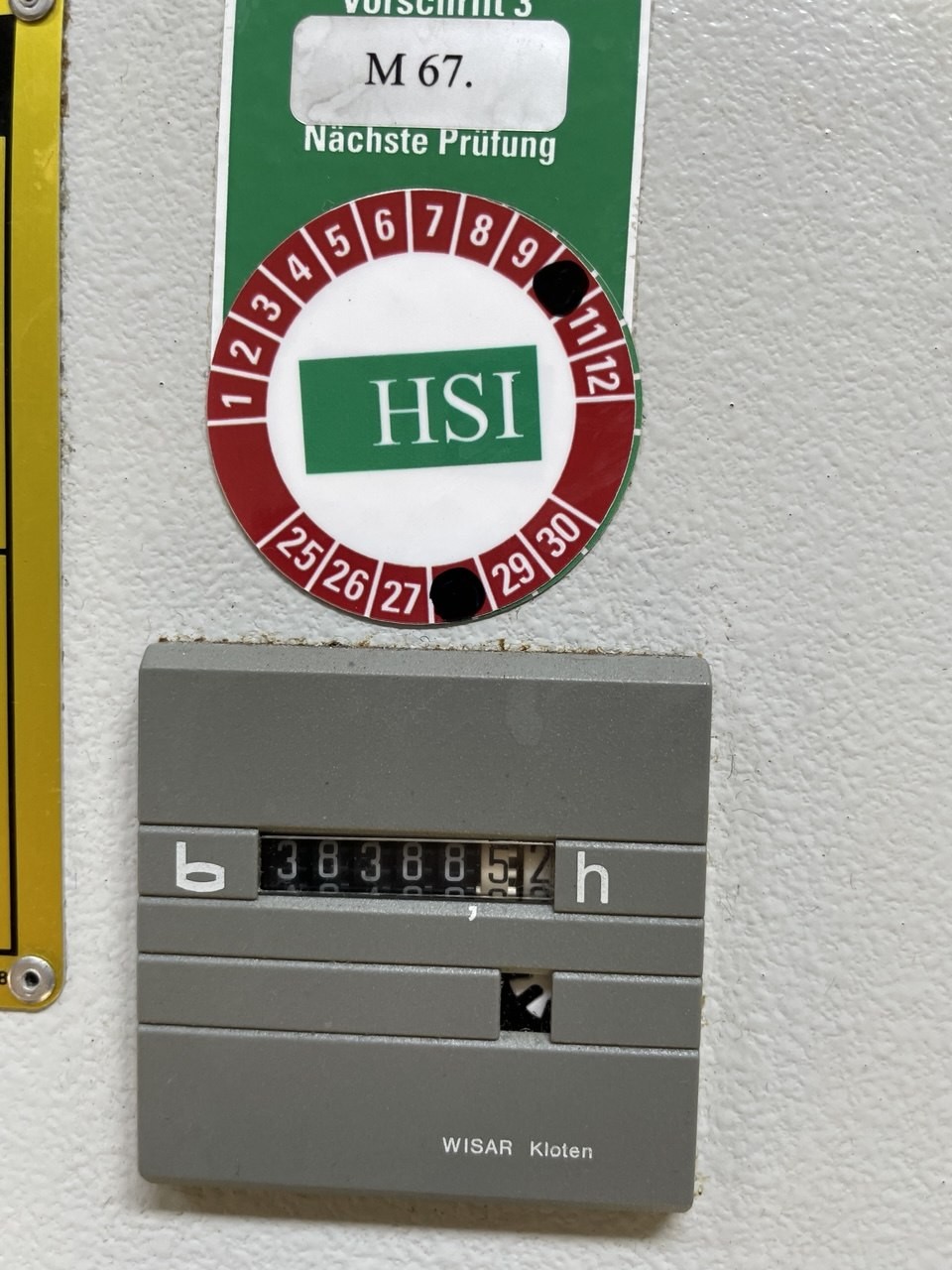

Operating hours (counter)
38,388.5 h

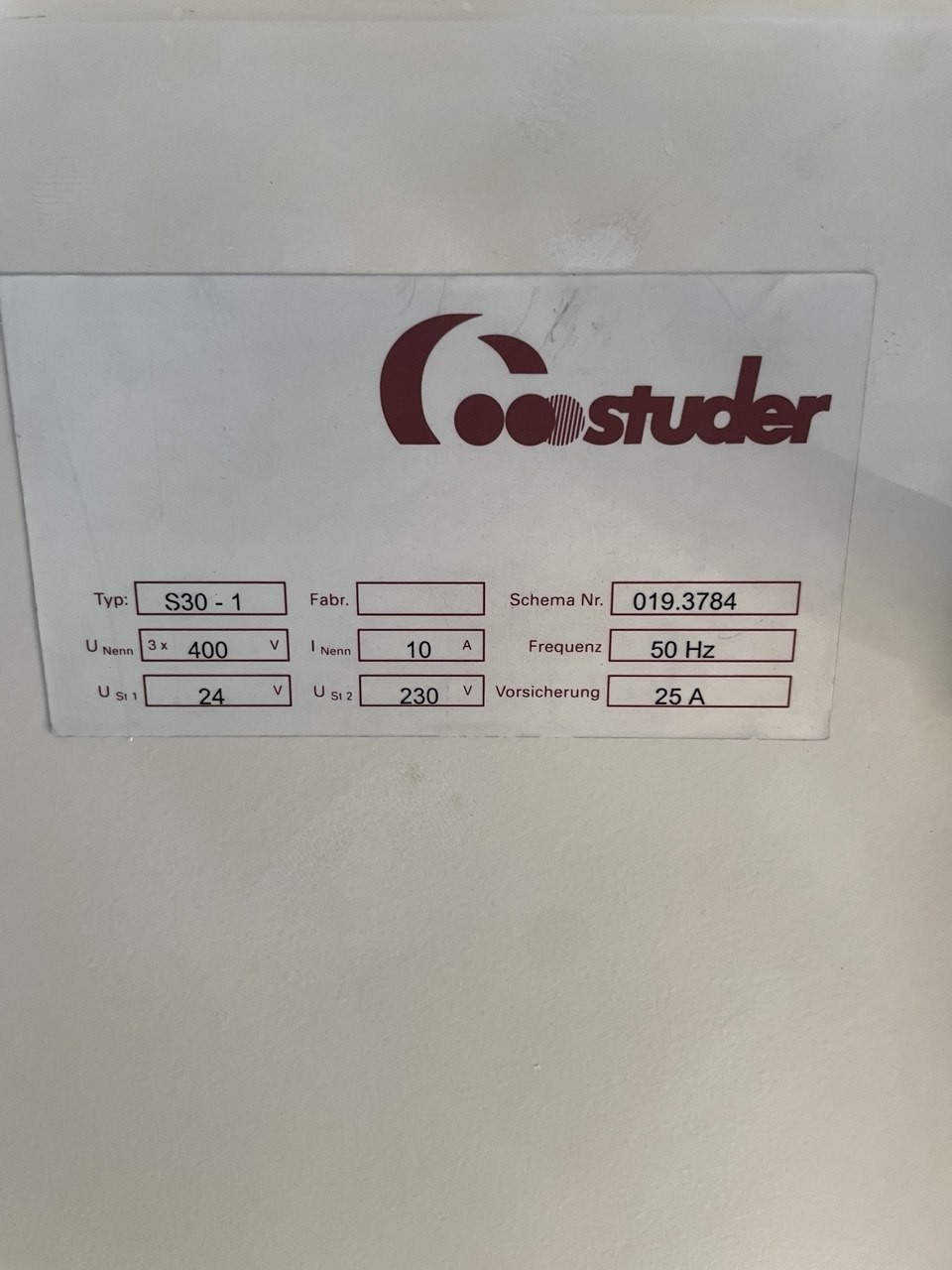

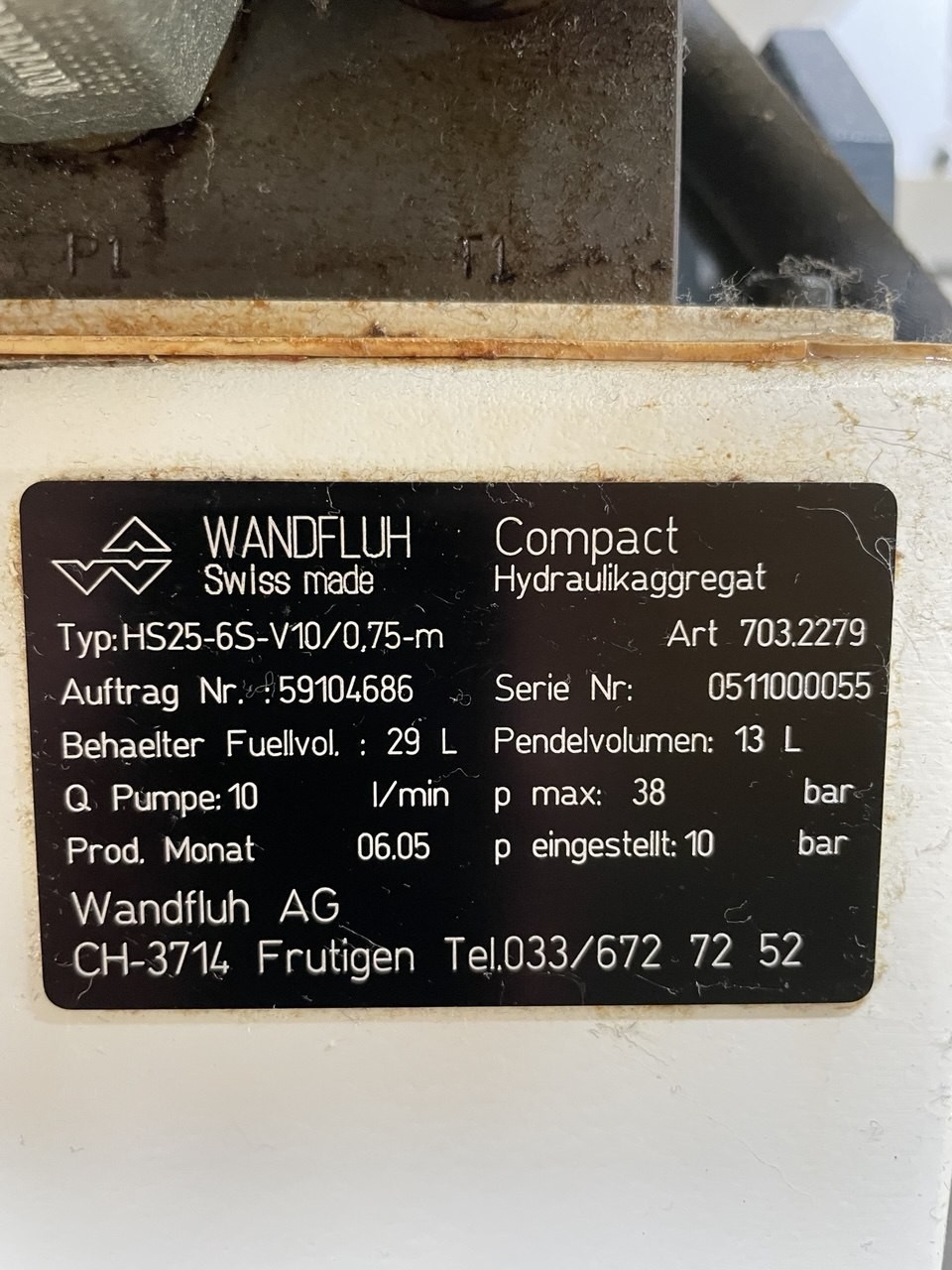

Connected load
13 kVA
Weight
approx. 3,500 kg (per factory brochure, 1,000 mm version)

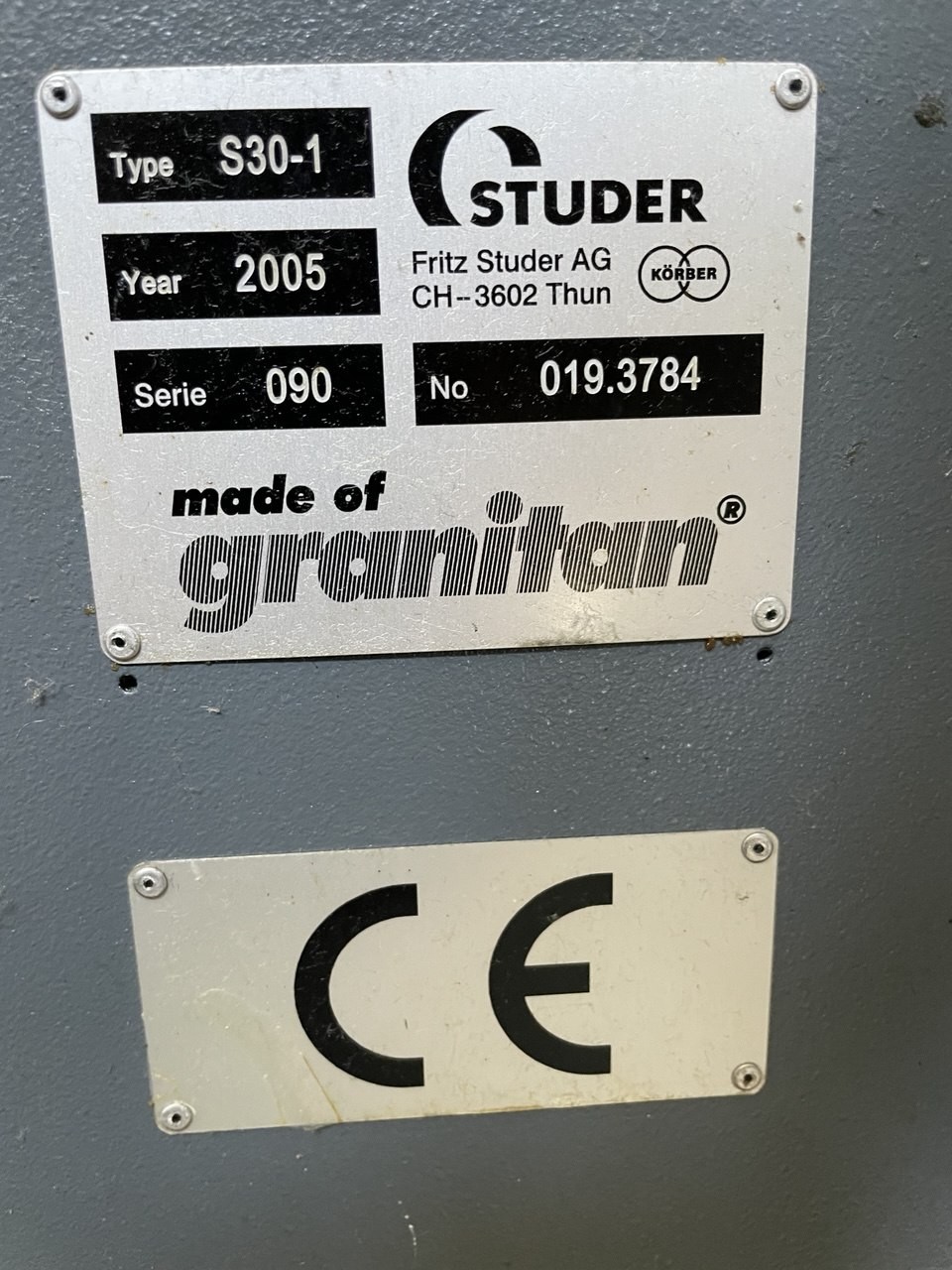

Series / Serial no.
090 / 019.3784
Wheel peripheral speed
35 m/s at 1,670 rpm · 44.2 m/s at 2,110 rpm

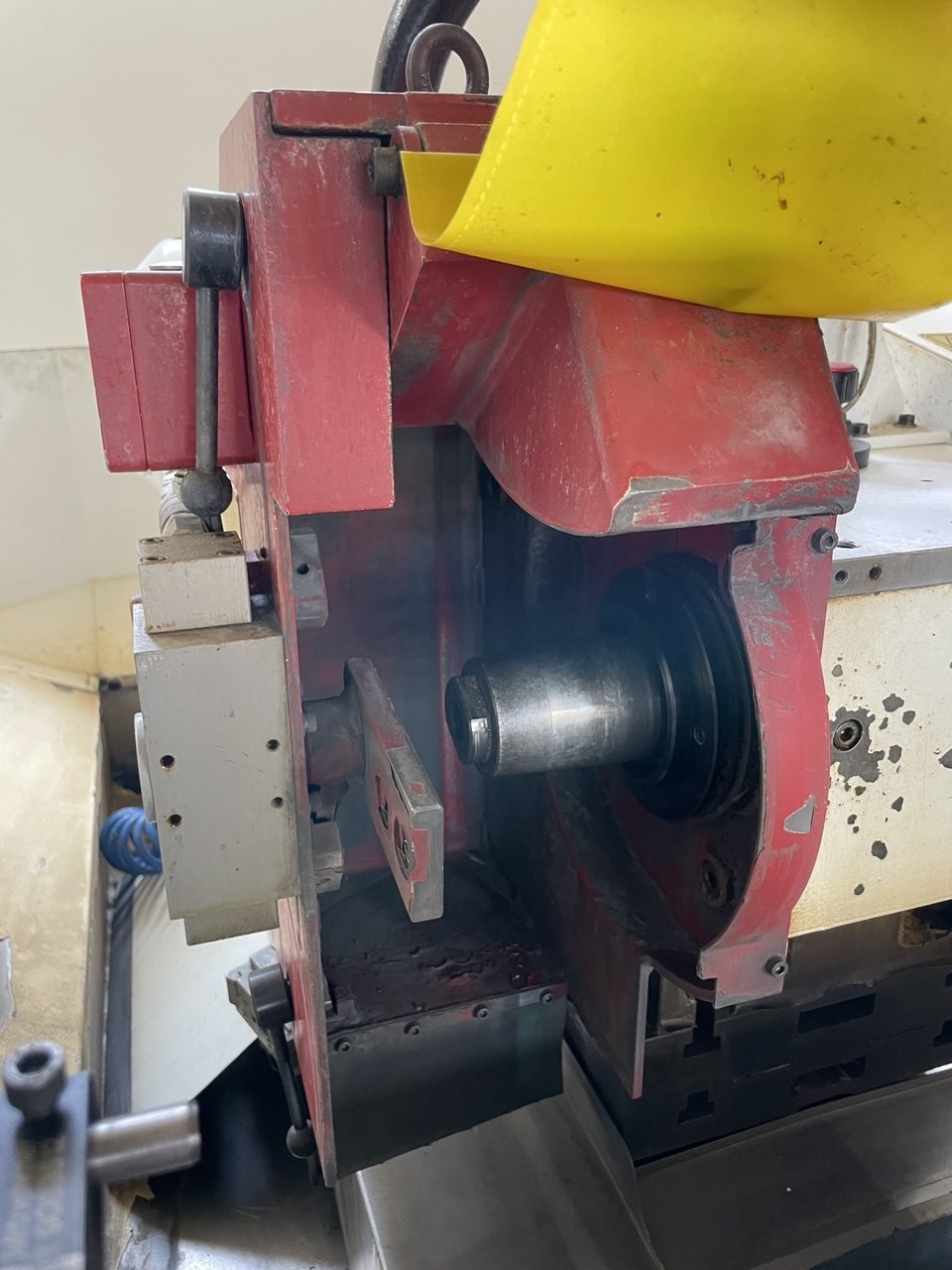

Wheel dressing
adjustable dressing attachment on the tailstock, manual — no automatic dressing cycle, no dressing compensation
Internal grinding geometry per manual
reach to face 210 mm · max. workpiece Ø 129 mm in the chuck, 140 mm with steady rest — applies with the internal grinding attachment fitted

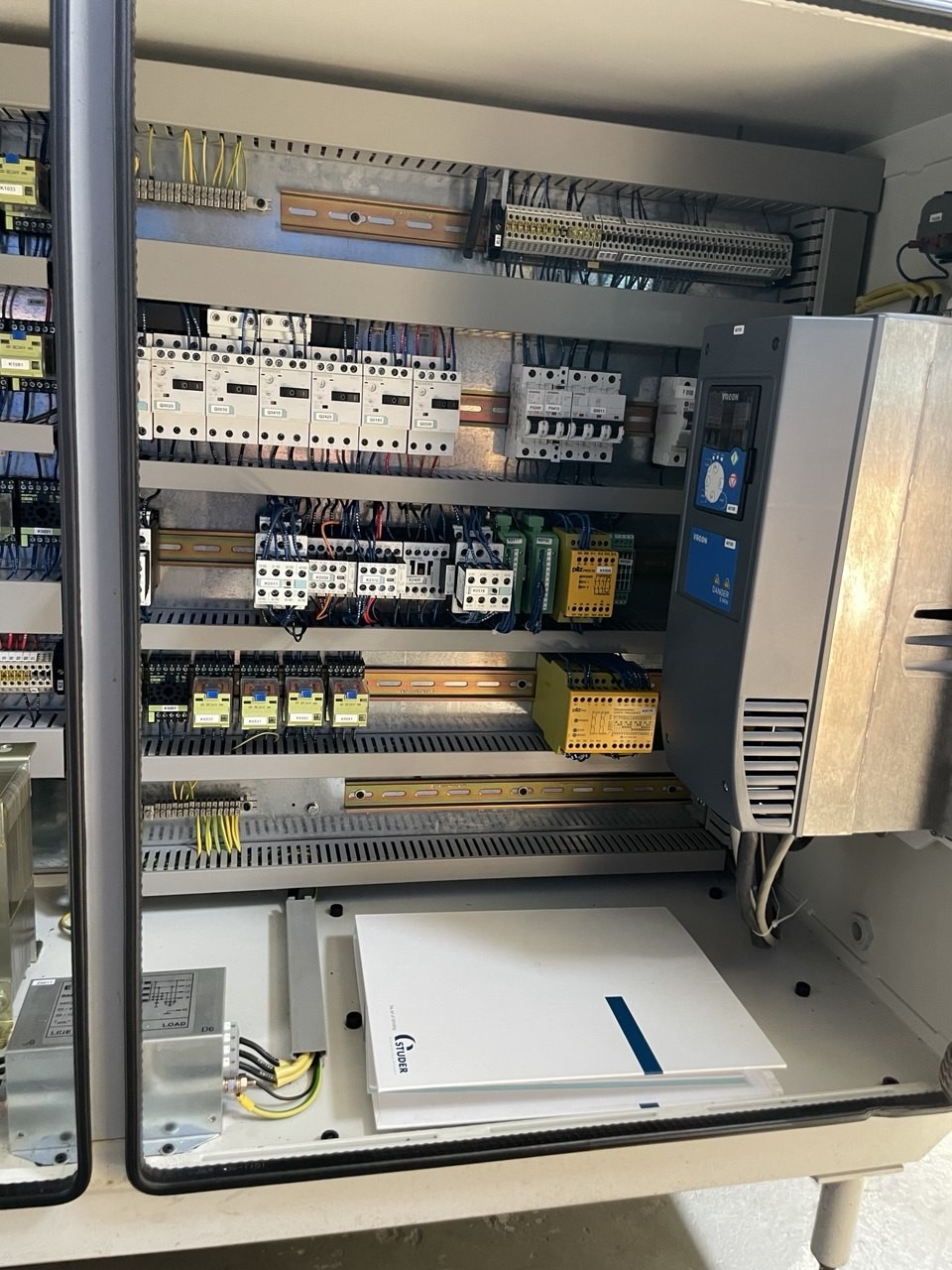

Power supply
400 V / 50 Hz · max. 13 kVA
Noise level (factory protocol)
≤ 75 dB(A)
Documentation
original operating manual DE/EN/FR incl. spare parts catalogue · EC declaration of conformity for this machine no.
Scope of delivery
  • ✓Machine complete: wheelhead, workhead, tailstock, hydraulic power unit, control cabinet — well-kept original condition
  • ✓Three-jaw chuck on the workhead — mounted
  • ✓Driver dog for grinding between centres (L = 50 mm)
  • ✓Centre in the tailstock
  • ✓Adjustable dressing attachment on the tailstock — mounted (the diamond is a wear part and is not assessed)
  • ✓Sony LD10 digital readout on a swivel arm

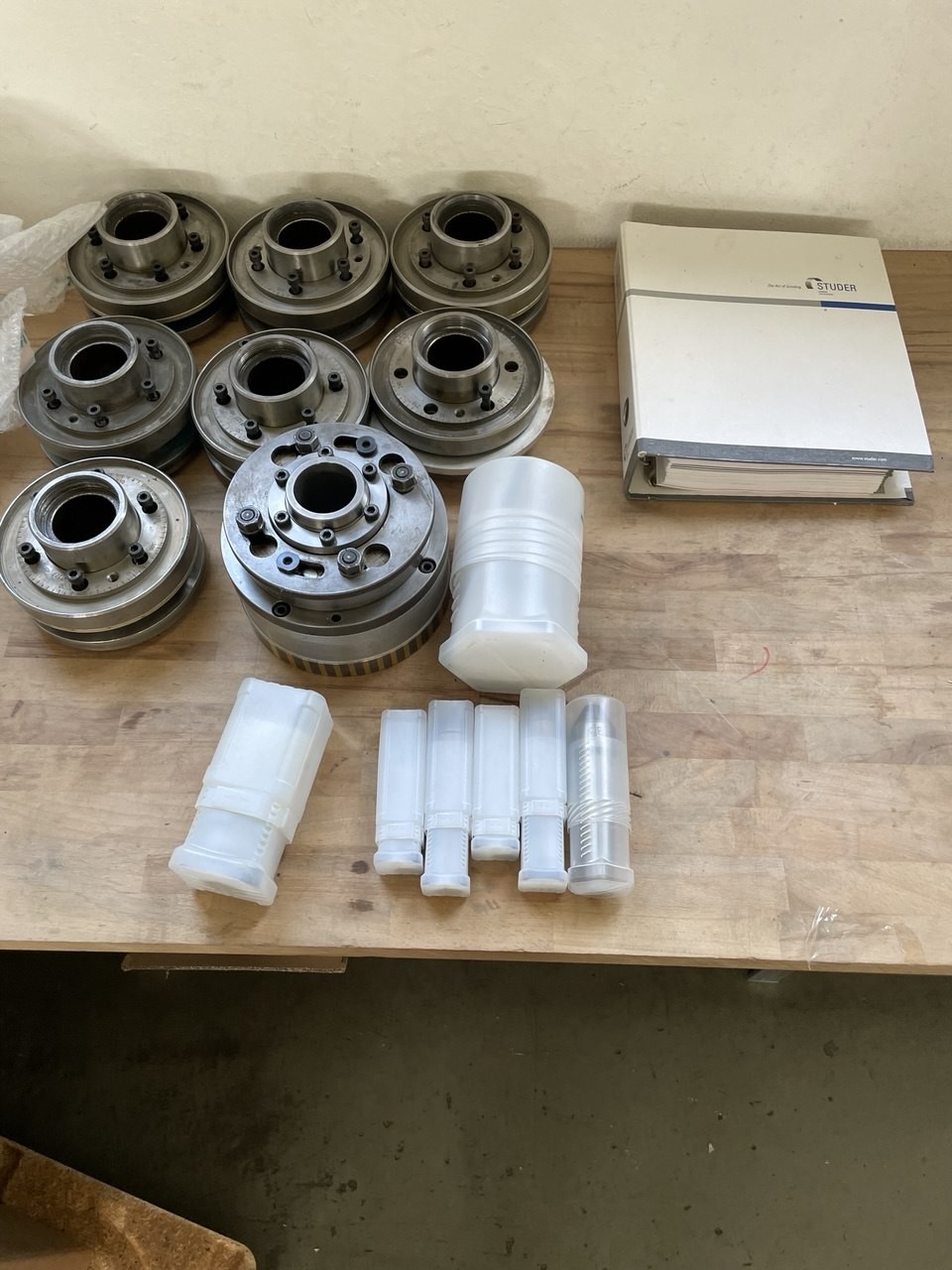

  • ✓8 grinding wheel mounting flanges, one of them a balancing flange
  • ✓Original operating manual DE/EN/FR incl. spare parts catalogue and noise measurement protocol
  • ✓EC declaration of conformity issued for machine no. 019.3784
  • ✓Transport-safe packing on a wooden pallet, loading onto your truck included
  • ✓Grinding wheels are not part of the scope of delivery
  • ✓An internal grinding attachment, belt spindles and in-process gauging are not documented on our photos and are therefore not part of the scope of delivery
Optional on request
  • +Demonstration, test grinding and geometric measurement — by prior arrangement only: the machine is packed and disconnected, ready for shipment; setting it up and commissioning it for a demonstration is carried out by an external service partner. We agree the effort and cost with you in advance.
  • +Commissioning and instruction at your site — via an external service partner, cost on request
  • +Detailed technical inspection report
  • +Transport to your facility (Incoterms 2020)
