STUDER S30-1 (2005)
★ In Stock
1 / 5
Description
Universal cylindrical grinding machine by Fritz Studer (Switzerland) for external and internal grinding of medium-sized parts. Granitan® machine base for high vibration damping and thermal stability, swivelling turret wheelhead, operation between centres and in the chuck. With installed in-process gauging (active size control) — ideal for one-off and small-batch production, toolmaking and regrinding.
Technical data
Distance between centres
650 / 1000 mm
Centre height
125 / 175 / 225 mm
Max. external grinding dia.
bis 449 mm
Max. workpiece length
650 / 1000 mm
Max. workpiece weight
130 kg
Grinding wheel max.
Ø 500 × 80 mm
Wheel spindle power
6 kW
Wheel spindle speed max.
2 110 min⁻¹
X travel (infeed)
260 mm
Z travel (longitudinal)
700 / 1050 mm
Wheelhead swivel (B)
180°
Workhead swivel (C)
stufenlos
Table swivel
10 / 8,5°
Control
Konventionell, hydraulische Zyklen (keine CNC)
Base material
Granitan® S103

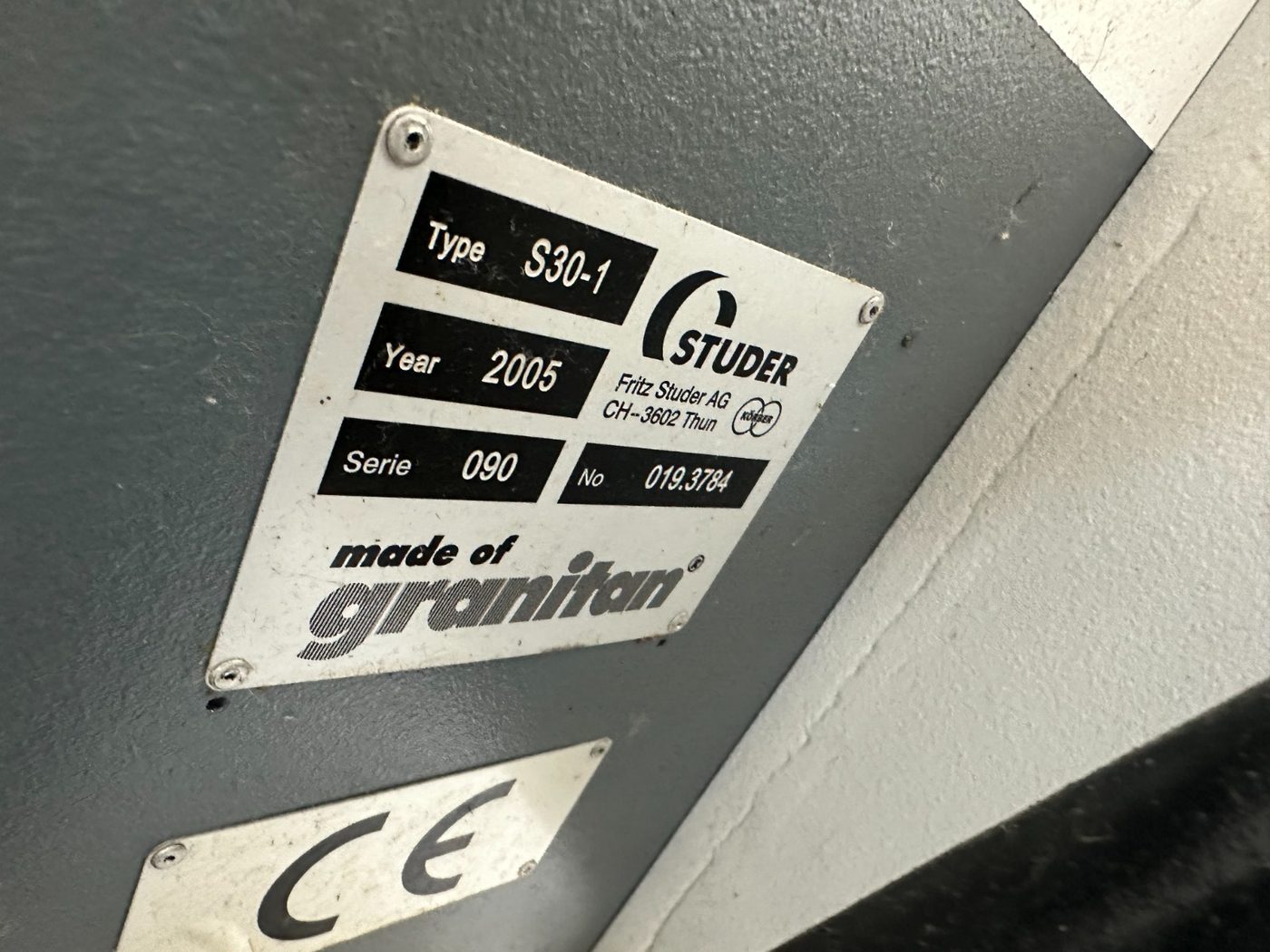

Series / Serial no.
090 / 019.3784
Scope of delivery

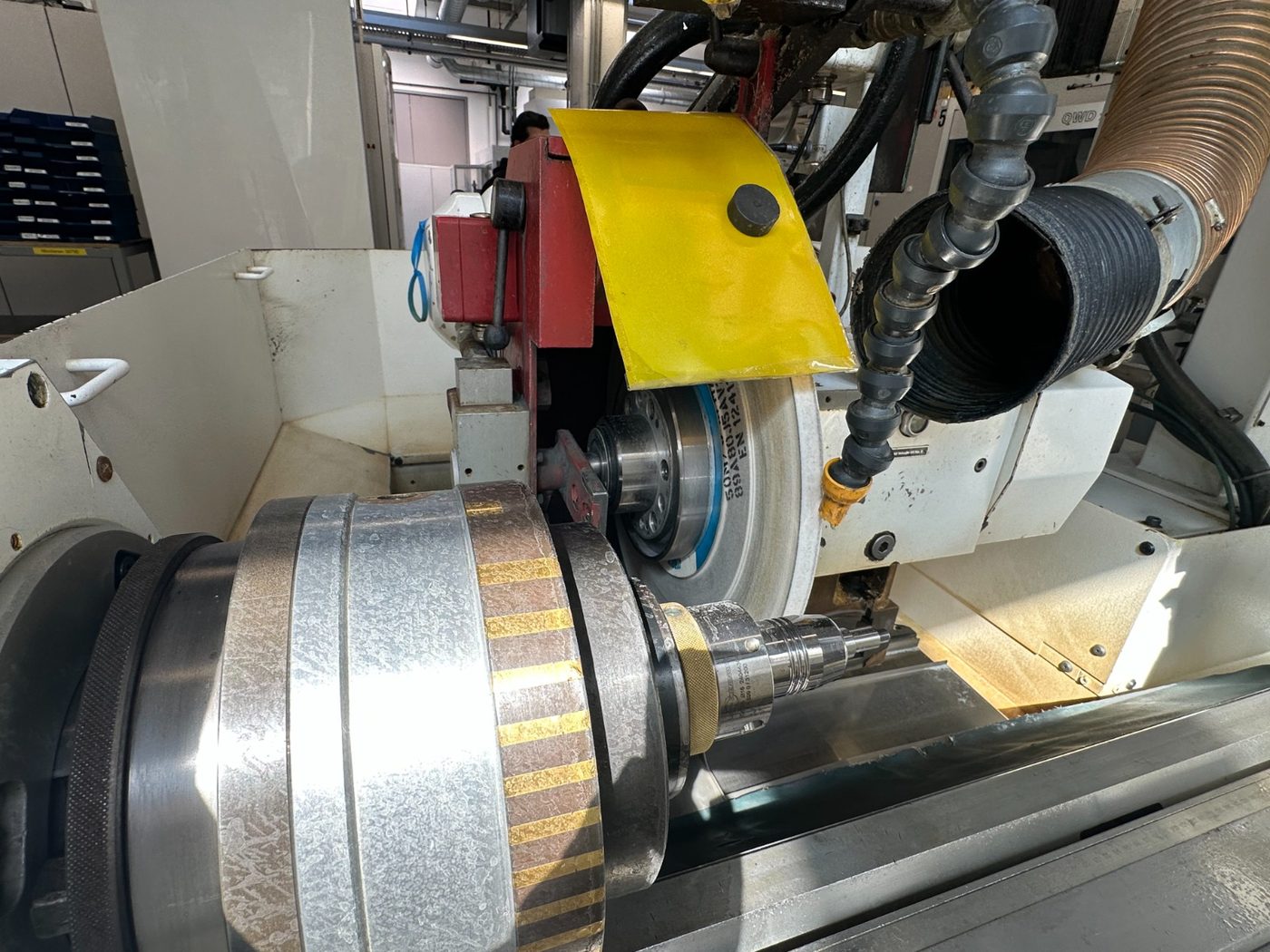

- ✓Wheelhead with grinding wheel approx. Ø 500 mm
- ✓Workhead with drive (between-centres and chuck operation)
- ✓Tailstock with carbide centre, adjustable pressure
- ✓In-process gauging (active size control) — installed
- ✓Coolant supply with filtration, mist extraction

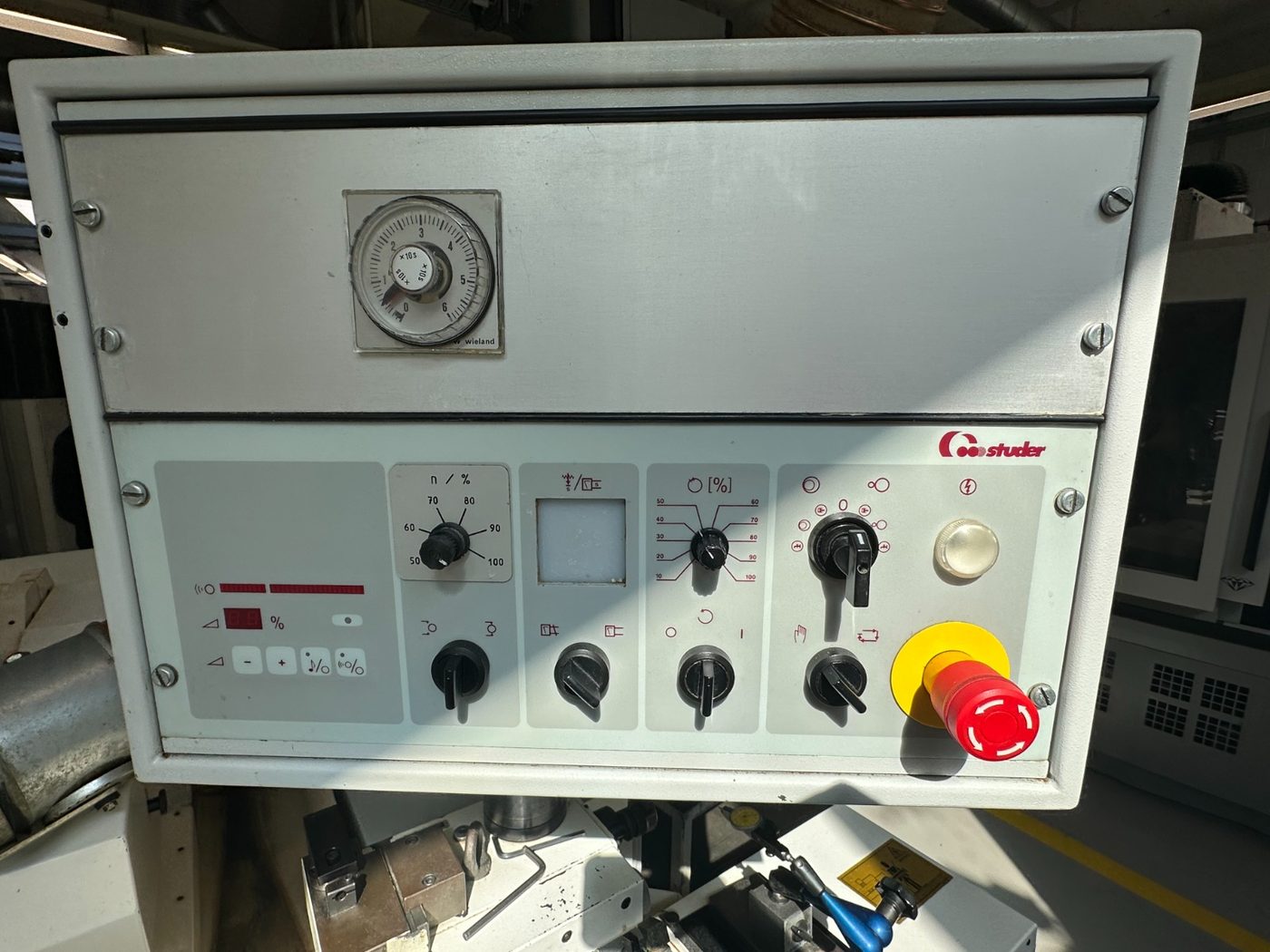

- ✓Original STUDER control panel
- ✓Granitan® machine base
Optional on request
- +Internal grinding attachment (on request)
- +Geometric inspection & test grinding before delivery (on request)
- +Transport to your facility (on request)
